In the modern South African manufacturing landscape, “Water Shedding” has become as significant a threat as “Load Shedding.” For a large-scale factory, a four-hour municipal outage doesn’t just stop the taps—it halts cooling towers, stops production lines, and compromises sanitation.
Installing a 1 million liter (1 Megalitre) backup water system is the most effective way to “de-risk” your operations. Here is a step-by-step guide to implementing a high-capacity Aluzinc® reservoir at your facility.
Step 1: Assessing Consumption and Peak Demand
Before breaking ground, you must determine your Required Buffer.
- Daily Usage: Calculate your average daily water consumption in kiloliters (kL).
- Autonomy Period: How many days of operation do you need to survive without municipal input? For most plants, a 2 to 3-day reserve (1,000kL / 1 million liters) is the industry benchmark for safety.
Step 2: Selecting the Site and Foundation

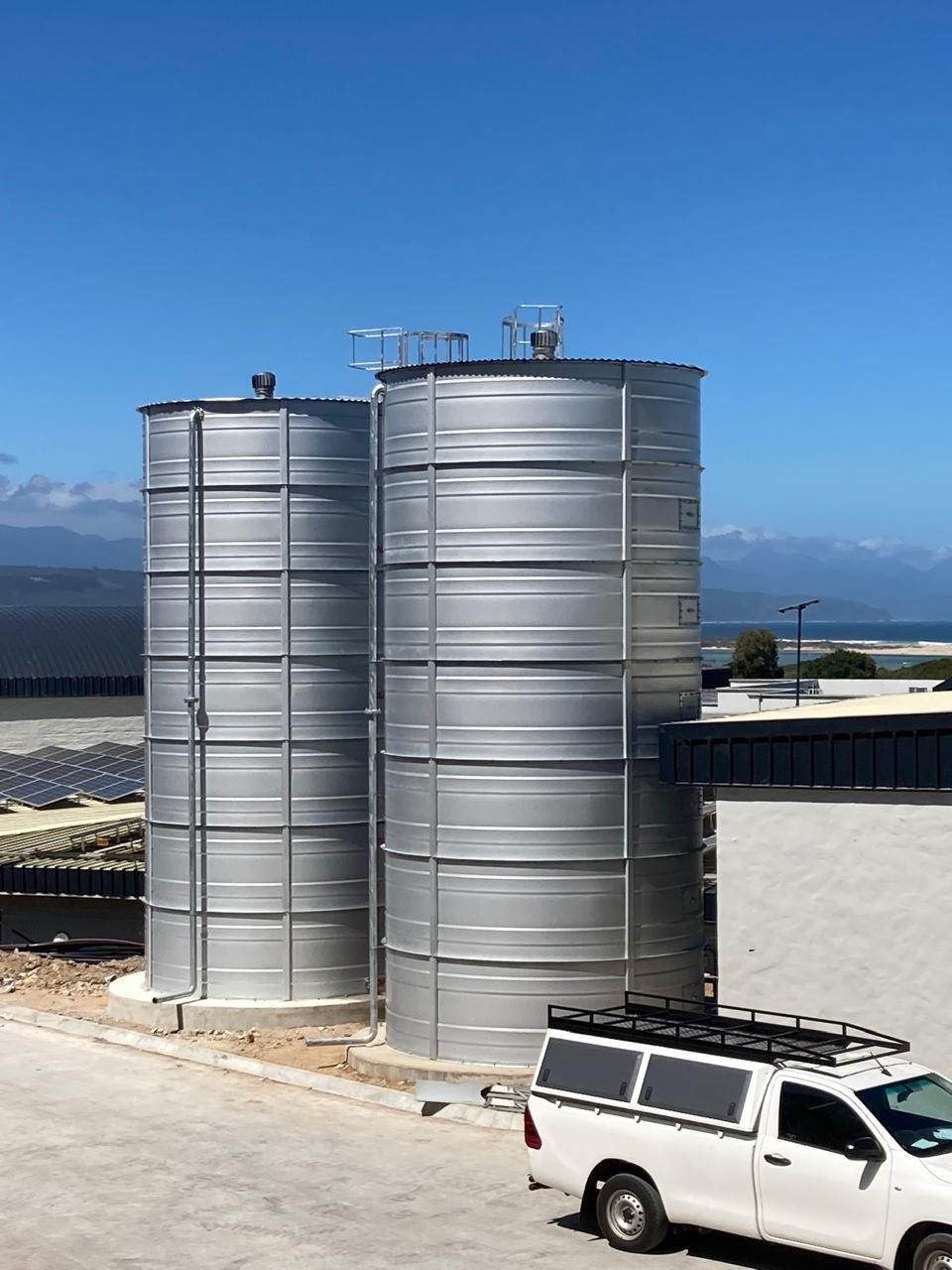

One of the greatest advantages of Rainbow Reservoirs’ Aluzinc® tanks is their footprint efficiency. A 1 million liter tank typically requires a diameter of approximately 15 to 18 meters, depending on the height.
- The Sand-Bed Option: Unlike concrete reservoirs that require massive reinforced slabs, modular steel tanks can often be installed on a compacted sand-bed foundation with a concrete ring beam.
- Cost Saving: This reduces your civil engineering costs by up to 50% and slashes the preparation time from weeks to days.
Step 3: Engineering for “First-In, First-Out” (FIFO)
A common mistake in backup systems is “stagnant water.” If water sits in a tank for months without moving, it can become a breeding ground for bacteria.
To prevent this, we design the 1 million liter system to be integrated into your main supply line. By using a “First-In, First-Out” plumbing configuration, the municipal water constantly flows through the tank and into the factory. This ensures that your backup supply is always as fresh as the municipal feed.
Step 4: The Rapid Assembly Process
Because Rainbow Reservoirs uses a modular, bolted-panel system, the physical installation of a 1-megalitre tank is remarkably fast:
- Panel Bolting: High-tensile Aluzinc® panels are bolted together in rings, starting from the ground and lifting upward using specialized jacking systems.
- Liner Installation: A heavy-duty 1000gsm RPVC liner is fitted inside. This liner acts as the watertight seal, ensuring the Aluzinc® shell never touches the water.
- Roofing: A lightweight, high-strength Aluzinc® roof is installed to prevent evaporation and contamination from birds or dust.
Step 5: Monitoring and Automation
A backup system is only useful if you know it’s full. Your 1 million liter installation should include:
- The Levitator Gauge: A mechanical, high-visibility water level indicator.
- Electronic Monitoring: Integration into your factory’s SCADA or BMS (Building Management System) to provide real-time alerts if levels drop.
- Automatic Inflow Valves: High-flow float valves that automatically refill the tank the moment municipal pressure returns.
The Bottom Line: ROI on Reliability
A 1 million liter backup system is an investment in operational insurance. When the municipal grid fails, your competitors may have to send staff home and cancel orders. With a Rainbow Reservoir Aluzinc® tank, your plant keeps running, protected by 1,000,000 liters of secure, clean water.
